post #1 of 14 (permalink) Old 02-26-2019 Thread Starter
PBP RACER

russpalmbones's Avatar

Join Date: Nov 2018
Posts: 50
Garage
Help with Bike ID

Not the best photo but the seller claims it has a Polini WC engine. Looks like a Blata 2.6 to me? He is asking $700 which I know is too much but Any help would making ID would be great before I make the drive to look at it. Thanks
Attached Images
File Type: png Screenshot_20190226-153514_1551224274427.png (510.9 KB, 17 views)
russpalmbones is offline
Sponsored Links
Advertisement

post #2 of 14 (permalink) Old 02-26-2019
BUILDEM,WRECKEM,REBUILDEM

CAM2's Avatar

Join Date: Mar 2008
Posts: 20,507
Re: Help with Bike ID

Quote:
Originally Posted by russpalmbones View Post
Not the best photo but the seller claims it has a Polini WC engine. Looks like a Blata 2.6 to me? He is asking $700 which I know is too much but Any help would making ID would be great before I make the drive to look at it. Thanks
If its real it would be a Blata Elite10 series...Ask for them to take a pic of the top fork clamp and the pullstarter...

Top clamp should say Blata and the pullstarter Polini Motori

Pretty much worth the $700.00 if it is real..Retail was like $2800.00

Cut
Up
Stuff
To
Obtain
Masterpiece

Last edited by CAM2; 02-26-2019 at 07:20 PM.
CAM2 is offline
post #3 of 14 (permalink) Old 02-26-2019 Thread Starter
PBP RACER

russpalmbones's Avatar

Join Date: Nov 2018
Posts: 50
Garage
Anything in particular to look for on the engine for wear? Do I need to check the fluid in the cooling system and belts/,pumps etc?
russpalmbones is offline
Sponsored Links
Advertisement

post #4 of 14 (permalink) Old 02-26-2019
BUILDEM,WRECKEM,REBUILDEM

CAM2's Avatar

Join Date: Mar 2008
Posts: 20,507
Re: Help with Bike ID

Quote:
Originally Posted by russpalmbones View Post
Anything in particular to look for on the engine for wear? Do I need to check the fluid in the cooling system and belts/,pumps etc?
Look in the overflow bottle.....If it looks gacked up like compression has been getting into the water it most likely has a bad head gasket..

Check the waterpump to see if its seized too..

Make sure it has compression..

Physically roll it around on the ground checking the brakes also making sure the neck bearings and clutch are good,,

A bike that looks that clean and is a current picture should fire up no problem if it was fully drained before being stored away..

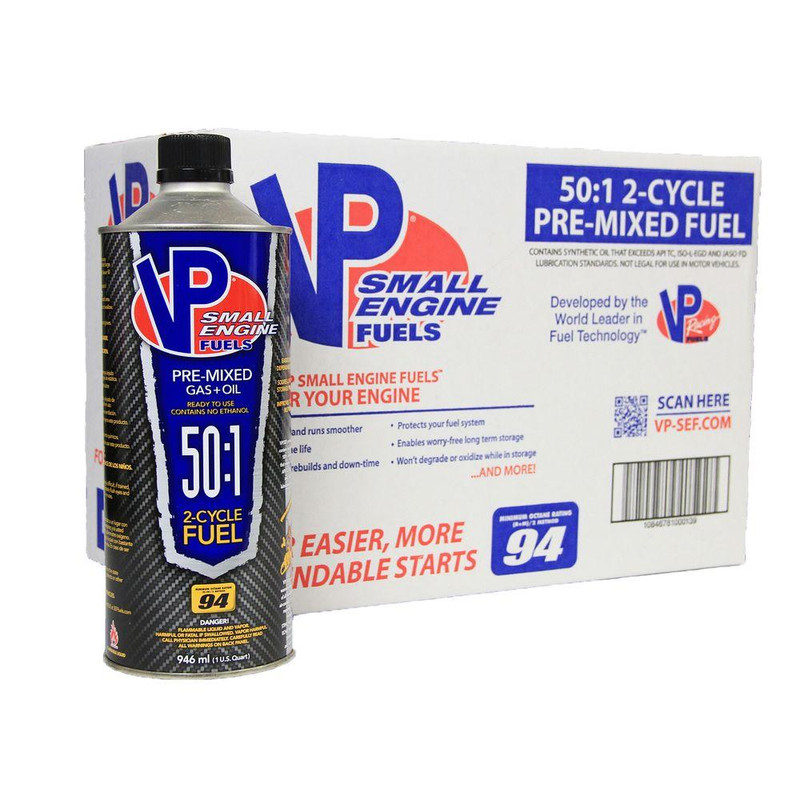

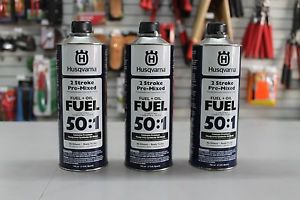

Bring fuel..94/95 octane mixed to 50:1...They sell 94/95 octane in a can already mixed at either Lowes or home depot and sold by VP racing fuel;-Husqvarna too...




Cut
Up
Stuff
To
Obtain
Masterpiece

Last edited by CAM2; 02-26-2019 at 09:39 PM.
CAM2 is offline
post #5 of 14 (permalink) Old 02-26-2019
PBP RACER

Chrisi's Avatar

Join Date: Aug 2018
Age: 36
Posts: 104
I think the elite 10 was only buildt with ac engine, should be an polini 6.2 ac 3 port cylinder.

I think its a elite 11

Get your kick with 2 stroke mix

Last edited by Chrisi; 02-26-2019 at 11:59 PM.
Chrisi is offline
post #6 of 14 (permalink) Old 03-01-2019
BUILDEM,WRECKEM,REBUILDEM

CAM2's Avatar

Join Date: Mar 2008
Posts: 20,507
Re: Help with Bike ID

Quote:
Originally Posted by Chrisi View Post
I think the elite 10 was only buildt with ac engine, should be an polini 6.2 ac 3 port cylinder.

I think its a elite 11
Elite 10 comes both watercooled and aircooled Im pretty sure seeings ive seen them both ways.

Blata Eite 11 has a more triangulated shaped swingarm and it cant be am Elite13 because that's a half fairing model...

Cut
Up
Stuff
To
Obtain
Masterpiece

Last edited by CAM2; 03-01-2019 at 06:25 PM.
CAM2 is offline
post #7 of 14 (permalink) Old 2 Weeks Ago Thread Starter
PBP RACER

russpalmbones's Avatar

Join Date: Nov 2018
Posts: 50
Garage
I think I have a Blata Elite 11w does anyone know what years these we're produced? The Serial is CZ 07648 WE if that makes any sense. Im trying to figure out how old this thing is. Thanks
russpalmbones is offline
post #8 of 14 (permalink) Old 2 Weeks Ago
BUILDEM,WRECKEM,REBUILDEM

CAM2's Avatar

Join Date: Mar 2008
Posts: 20,507
Re: Help with Bike ID

Quote:
Originally Posted by russpalmbones View Post
I think I have a Blata Elite 11w does anyone know what years these we're produced? The Serial is CZ 07648 WE if that makes any sense. Im trying to figure out how old this thing is. Thanks

Yeah..Youre right...We had a member here that bought a 10 that was liquid cooled but was a later model built bike that had the Blata Elite 11 engine on it....

The Elite 11 first came out in 1994...........

Cut
Up
Stuff
To
Obtain
Masterpiece
CAM2 is offline
post #9 of 14 (permalink) Old 2 Weeks Ago
verified

Join Date: Apr 2019
Posts: 5
Re: Help with Bike ID

what did i just buy?
I know its (probably) an Elite 13r?
what year?
Attached Images
File Type: jpg IMG_20190331_182651.jpg (512.1 KB, 8 views)
File Type: jpg IMG_20190403_210802.jpg (537.4 KB, 8 views)
File Type: jpg IMG_20190403_210705.jpg (521.9 KB, 9 views)

Last edited by Wouldpkr; 2 Weeks Ago at 07:54 PM.
Wouldpkr is offline
post #10 of 14 (permalink) Old 2 Weeks Ago
BUILDEM,WRECKEM,REBUILDEM

CAM2's Avatar

Join Date: Mar 2008
Posts: 20,507
Re: Help with Bike ID

Quote:
Originally Posted by Wouldpkr View Post
what did i just buy?
I know its (probably) an Elite 13r?
what year?
If its got the 14/14 SHA carb its an Elite 13A

If its got the PHVA carb its a 13R

Im pretty sure "UH" is 2005...

Welcome to the site and Good luck with the bike..

Cut
Up
Stuff
To
Obtain
Masterpiece

Last edited by CAM2; 2 Weeks Ago at 10:53 PM.
CAM2 is offline
post #11 of 14 (permalink) Old 2 Weeks Ago
Re: Help with Bike ID

Yes, I believe its an E13, 40cc air cooled Blata, something like 36mm bore x 39mm stroke. probably a 14mm Dell 'Orto SHA carb.

Empty Pockets Racing: The difficult we do, the impossible takes longer.....
EPR is offline
post #12 of 14 (permalink) Old 2 Weeks Ago
verified

Join Date: Apr 2019
Posts: 5
Re: Help with Bike ID

Yep, its got an SHA. Thanks guys!
Wouldpkr is offline
BUILDEM,WRECKEM,REBUILDEM

CAM2's Avatar

Join Date: Mar 2008
Posts: 20,507
Re: Help with Bike ID

Quote:
Originally Posted by Wouldpkr View Post
Yep, its got an SHA. Thanks guys!

Your bike is a 2005 model Elite 13A..


For some odd reason Rasto isnt responding so I contacted Blata in the UK and unfortunately theyve only been so much of a help...

Heres a copy of the email I got from them.Hopefully Rasto responds...


Radim Rozek Bc. <[email protected]>

Apr 9, 2019, 7:46 AM (4 days ago)



Hi,

Old bikes cant find manuals in English so Czech may have to do. Hopefully will help see enclosure and let me know if you need anything else. The SHA carbie was generally used on the 3 port engines but its possible to have on a 5 port air or water cooled cylinder as you can see on the Elite 13 engine jpeg. SHA carbie has part number 120.002.00.

Attached Images
File Type: png Blata Elite 11 schematic.PNG (486.3 KB, 4 views)
File Type: png blata elite motor schematic.PNG (383.7 KB, 5 views)

Cut
Up
Stuff
To
Obtain
Masterpiece

Last edited by CAM2; 6 Days Ago at 11:18 AM.
CAM2 is offline
verified

Join Date: Apr 2019
Posts: 5
Re: Help with Bike ID

Cool!
Thanks for the info Cam!
Im waiting on a gas tank to show up soon.
Ill probably drop the engine and have a closer look at it. I cant find any numbers on it at the moment.
Wouldpkr is offline
